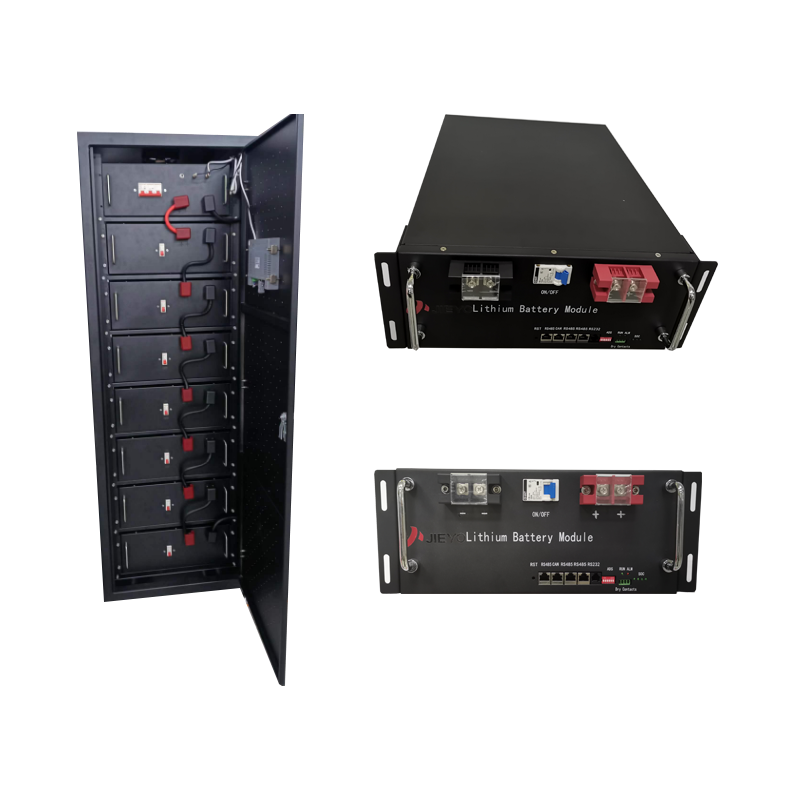

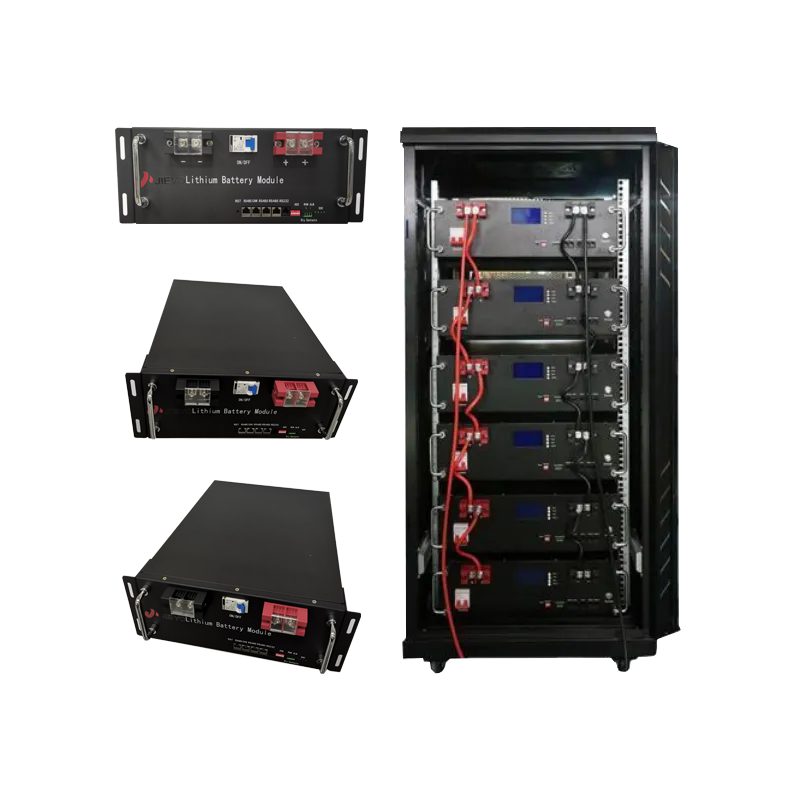

358V 200Ah High Voltage Battery Storage Systems

High voltage batteries are usually rated above 220V. These batteries are able to charge and discharge faster than the low voltage batteries and can cover those quick demand surges from starting equipment. These batteries do not need large conductors because their voltage is so high.

Battery Performance

• Nominal Voltage：358V
• Nominal Capacity：200Ah
• Nominal Energy：71680Wh
• Internal Resistance：≤20mΩ @ 50% SOC

Charge Performance

• Recommended Charge Current：50A
• Maximum Charge Current：≤100A
• Recommended Charge Voltage：392V
• BMS Charge Cut-Off Voltage：<408.8V
• Reconnect Voltage：>397.6V
• Balancing Voltage：<392V

Discharge Performance

• Maximum Continuous Discharge Current：100A
• Peak Discharge Current：≤200A(≤5S)
• BMS Discharge Cut-Off Current：210A ±10A (50-150ms)
• Recommended Low Voltage Disconnect：280V
• BMS Discharge Cut-Off Voltage：>280V(2s)
• Reconnect Voltage：>308V
• Short Circuit Protection：450 ~ 800 μs

Temperature Performance

• Discharge Temperature：-4 ~ 131 ºF (-20 ~ 55 ºC)
• Charge Temperature：32 ~ 113 ºF (0 ~ 45 ºC)
• Storage Temperature：23 ~ 95 ºF (-5 ~ 35 ºC)
• BMS High Temperature Cut-Off：149 ºF (65 ºC)
• Reconnect Temperature：131 ºF (55 ºC)
