How does a high voltage battery pack system work?

13 May, 2023

By hqt

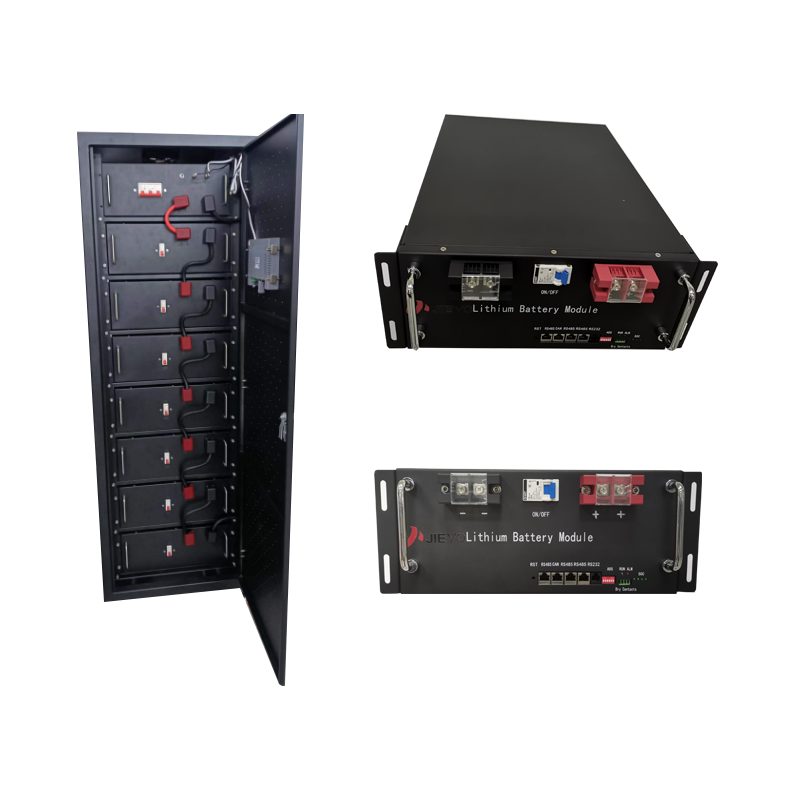

High voltage battery pack

What is meant by High voltage battery pack?

A battery that is made to output a high voltage is known as a high voltage battery pack. In electric and hybrid electric vehicles, batteries are the main power source for the car's electric motor when they are frequently employed. Lithium-ion (Li-ion) technology, which suggests a high energy density and extended cycle life, is frequently used in high voltage battery pack. These batteries are often constructed of a number of distinct cells that are related in series to increase the battery pack's total voltage output. These battery packs are also utilized in grid storage and renewable energy systems, among other uses. By offering dependable, high-performance energy storage solutions, these batteries significantly contribute to switching to a cleaner, more sustainable energy system.

Importance of using 768V 200Ah systems for high voltage battery packs:

These advantages demonstrate how high voltage battery storage with 768V 200Ah systems may open up new doors and spur energy storage innovation.

  • Increased power density as compared to systems with lower voltages.
  • Rapid charging and discharging capabilities, perfect for use in electric vehicle applications.
  • Battery packs that are more compact and lightweight enable longer driving distances and increased vehicle economy.
  • Decreased energy losses when charging and discharging result in higher system efficiency.
  • Lower running expenses and longer battery life.
  • Maximizing the use of green energy through efficient integration with renewable energy sources.
  • A simpler battery pack design and cutting-edge battery management technologies are examples of improved safety measures.
  • Flexibility in applications such as grid-scale energy storage, backup power for industry, and emergency power systems.
  • Helping to stabilize the system and incorporating additional renewable energy sources into the electricity grid.

Unlock the Potential of High Voltage Battery Storage with 768V 200Ah Systems:

The 768V 200Ah design of high-voltage battery storage systems, in particular, has the potential to revolutionize energy storage methods in a variety of applications. These systems have a number of benefits that can open up new avenues and stimulate innovation in the energy industry. In this piece, we'll examine the possibilities of high voltage battery storage technologies and how they could affect the way energy is stored in the future.

  • Increased power density:

The enhanced power density of high voltage battery pack systems is one of their main advantages. The amount of power that can be stored or discharged from a battery of a certain volume or weight is referred to as its power density. These systems may operate at greater voltages than their lower voltage equivalents, resulting in larger power densities.

  • Rapid charging capabilities:

768V 200Ah systems are the best choice for applications requiring quick charging and discharging because of their high-power density. For instance, these battery systems may deliver rapid acceleration and high-performance driving experiences in electric cars (EVs). As a result of the enhanced power density, battery packs can be made smaller and lighter, freeing up space and lowering total weight, which improves vehicle economy and increases driving range.

The high voltage structure also makes it possible to integrate renewable energy sources well. Solar power generation is an intermittent and frequently unexpected source of energy. High voltage battery storage devices may store extra energy when production is high and release it when supply is insufficient. By maximizing the use of renewable energy sources, this capacity provides a steady and dependable power supply and helps create a greener and more sustainable energy ecology.

  • Enhanced safety features:

High voltage battery pack offer improved safety features in addition to their power density and efficiency. Higher voltage operation enables the use of fewer cells, simplifying the battery pack's construction and lowering the likelihood of failure sites. Modern battery management systems keep an eye on the voltage, temperature, and other factors of the cells to ensure optimum performance and guard against potential safety risks like overcharging or over-discharging.

  • Use in a wide range of applications:

Beyond the integration of renewable energy sources and electric cars, high voltage battery storage systems are extremely versatile. Additionally, they may be used for a variety of purposes, including grid-scale energy storage, industrial power backup, and emergency power systems. They can meet large-scale energy needs thanks to their high density and efficiency, which also helps stabilize the system and makes it possible to incorporate additional renewable energy sources into the current power grid.

How high voltage batteries pack operate?

  • When using a high voltage battery pack, chemical energy is converted into electrical energy and stored inside the cells. These cells are frequently wired in series to produce an output voltage greater than what a single cell is capable of. The battery pack's voltage output is influenced by the number and kind of cells it contains.
  • Electrical current travels from the battery pack to the load when a load, such as an electric motor or an electronic device, is connected to the battery pack, completing the circuit.
  • When the battery pack is being charged, an external power source, like a charger, is attached, and electrical current travels from the power source to the battery pack. An internal chemical reaction sparked by the electrical current transforms electrical energy into chemical energy deposited inside the battery cells.
  • These battery packs are frequently fitted with a battery management system (BMS), which balances the voltage across the cells, checks the level of charge of the cells, and safeguards the cells from overcharging, over-discharging, and overheating.


When a load is connected to a high voltage battery pack, the chemical energy deposited inside the battery compartments is converted into electric energy. Many contemporary technologies, such as electric cars, renewable energy, and grid storage systems, depend on these battery packs. More and more households are adopting battery-back systems in light of all these benefits. A lengthy ageing and quality-checking process was performed on the finished product. The item you choose from us is appropriate for purchasing. The most economical approach to buying a useful thing is through JIEYO.
